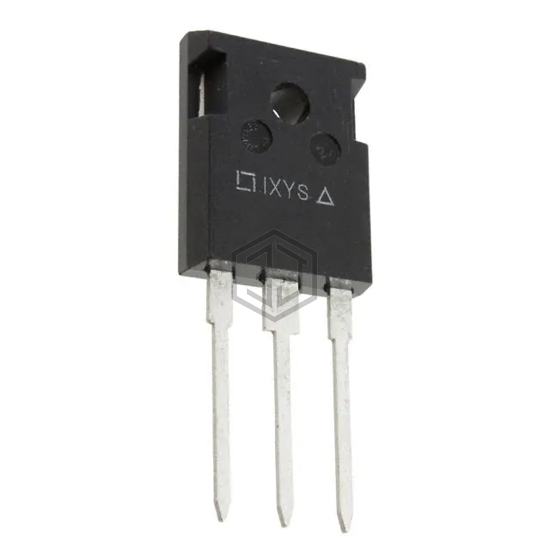

CS30-12IO1
SCR 1.2KV 49A TO247AD
CS30-12IO1 is a Thyristors - SCRs manufactured by IXYS. SCR 1.2KV 49A TO247AD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case TO-247-3.
In Stock: 18
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - Gate Trigger (Igt) (Max) | 55 mA |
| Voltage - On State (Vtm) (Max) | 1.63 V |
| Current - On State (It (AV)) (Max) | 30 A |
| Current - On State (It (RMS)) (Max) | 49 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 430A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
Frequently Asked Questions
CS30-12IO1 is a Thyristors - SCRs manufactured by IXYS. SCR 1.2KV 49A TO247AD
The mounting type of CS30-12IO1 is Through Hole.
The operating temperature range of CS30-12IO1 is -40°C ~ 150°C.
The package type of CS30-12IO1 is TO-247-3.
