IXYS Integrated Circuits Division
GATE DRIVER HALF BRIDGE 3P 0.27A

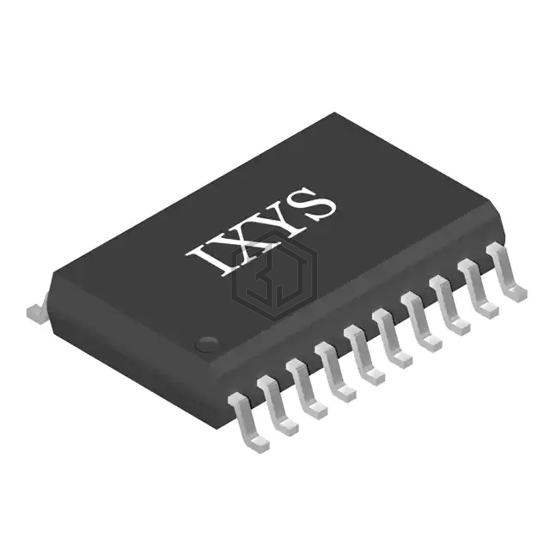

LF2388BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 3P 0.27A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 20-SOIC (0.295", 7.50mm Width).
In Stock: 7,862
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 420mA, 750mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 45ns, 25ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN73894MX | onsemi | IC GATE DRVR HALF-BRIDGE 28SOIC | 95% | View |
| 6ED2230S12TXUMA1 | Infineon Technologies | 1200V THREE PHASE DRIVER | 87% | View |
| HIP4086ABZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 24SOIC | 67% | View |
| HIP4086AABZ | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 24SOIC | 67% | View |
| HIP4086AABZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 24SOIC | 67% | View |
| HIP4086ABZT | Renesas Electronics America Inc | IC GATE DRVR HALF-BRIDGE 24SOIC | 67% | View |
Submit your RFQ for LF2388BTR and get a quote within 24 hours.
