IXYS Integrated Circuits Division
GATE DRIVER HIGH/LOW SIDE 1.4A

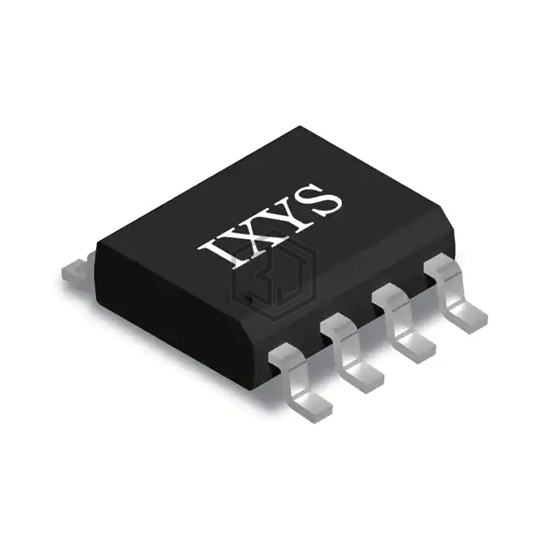

LF2181NTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 1.4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 6,697
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.9A, 2.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRS21814STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14SOIC | 100% | View |
| IR2183STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| IRS2183SPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 8SOIC | 100% | View |
| LF21844NTR | IXYS Integrated Circuits Division | GATE DRIVER HALF BRIDGE 1.4A | 100% | View |
| 2EDL23N06PJXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 14DSO | 94% | View |
| LF2184NTR | IXYS Integrated Circuits Division | GATE DRIVER HALF BRIDGE 1.4A | 93% | View |
Submit your RFQ for LF2181NTR and get a quote within 24 hours.
