IXYS Integrated Circuits Division
GATE DRIVER HALF BRIDGE 3P 0.12A

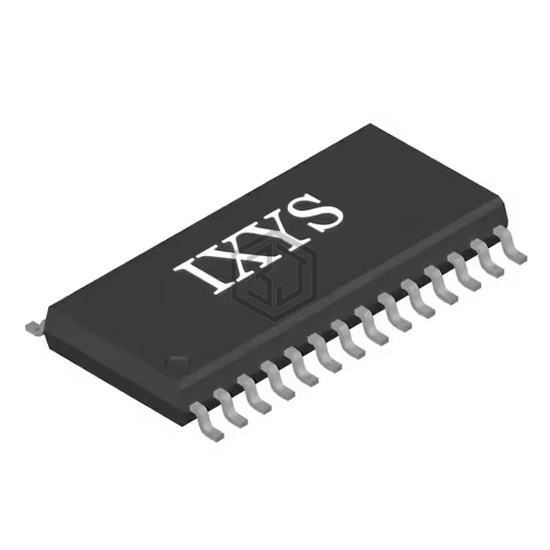

LF2136BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HALF BRIDGE 3P 0.12A. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).
In Stock: 2,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 3 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 200mA, 350mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 90ns, 35ns |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IR2136JTR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 89% | View |
| IRS2334MPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28MLPQ | 89% | View |
| IR21364STRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 28SOIC | 88% | View |
| IR21362JTR | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 44PLCC | 88% | View |
| IRS23365DMTRPBF | Infineon Technologies | IC GATE DRVR HALF-BRIDGE 48MLPQ | 88% | View |
| DGD0636MS28-13 | Diodes Incorporated | IC GATE DRVR HALF-BRIDGE 28SO | 76% | View |
