IXYS Integrated Circuits Division
GATE DRIVER HIGH/LOW SIDE 2A

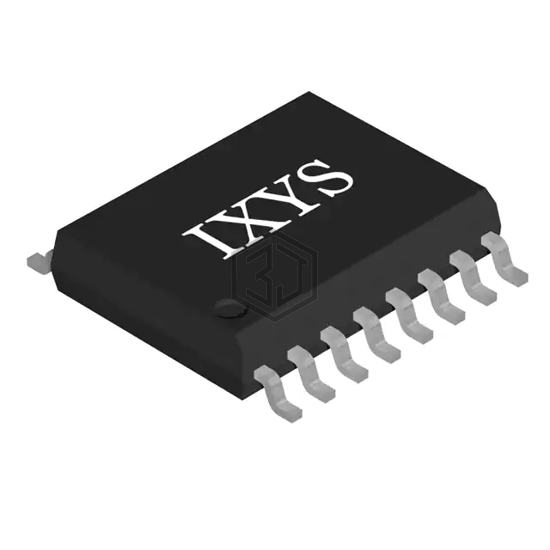

LF2113BTR is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. GATE DRIVER HIGH/LOW SIDE 2A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 10V ~ 20V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 9,683
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 5V, 9.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 15ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC4444IMS8E#TRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 63% | View |
| LTC4444IMS8E#PBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 63% | View |
| LTC4444HMS8E#WTRPBF | Analog Devices Inc. | IC GATE DRVR HALF-BRIDGE 8MSOP | 63% | View |
| MP18021HN-LF | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 63% | View |
| MP18021HN-A-LF | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 8SOIC | 63% | View |
| MP1921HQE-A-LF-Z | Monolithic Power Systems Inc. | IC GATE DRVR HALF-BRIDGE 9QFN | 63% | View |
Submit your RFQ for LF2113BTR and get a quote within 24 hours.
