IXYS Integrated Circuits Division
OPTOISO 3.75KV TRANS W/BASE 6DIP

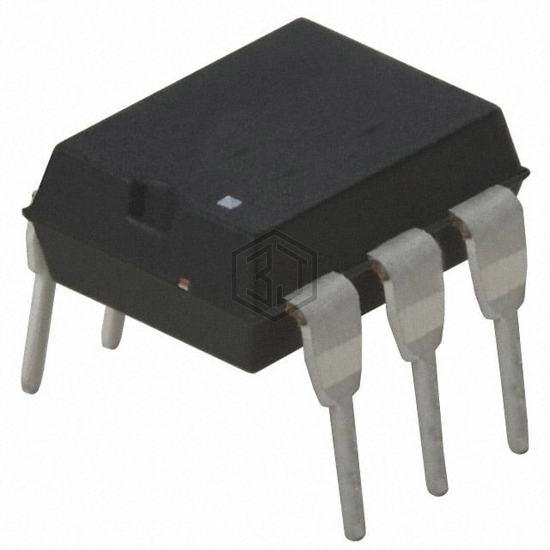

LDA101 is a Optoisolators - Transistor, Photovoltaic Output manufactured by IXYS Integrated Circuits Division. OPTOISO 3.75KV TRANS W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.300", 7.62mm).
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 33% @ 1mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 7µs, 20µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 1 mA |
| Vce Saturation (Max) | 500mV |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
Submit your RFQ for LDA101 and get a quote within 24 hours.
