IXYS Integrated Circuits Division
IC GATE DRVR LOW-SIDE 8SOIC

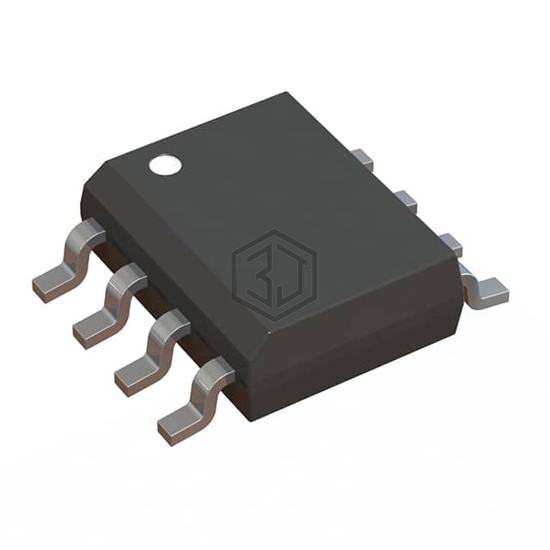

IXDD609SIA is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. IC GATE DRVR LOW-SIDE 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 35V, package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 3,641
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 35V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 22ns, 15ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IXDD609D2TR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| IXDD609SIATR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| IXDN509SIA | IXYS | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| IXDN509SIAT/R | IXYS | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| IXDD509SIA | IXYS | IC GATE DRVR LOW-SIDE 8SOIC | 98% | View |
| ZXGD3004E6TA | Diodes Incorporated | IC GATE DRVR LOW-SIDE SOT23-6 | 65% | View |
Submit your RFQ for IXDD609SIA and get a quote within 24 hours.
