IXYS Integrated Circuits Division
5-AMP DUAL LOW-SIDE MOSFET DRIVE

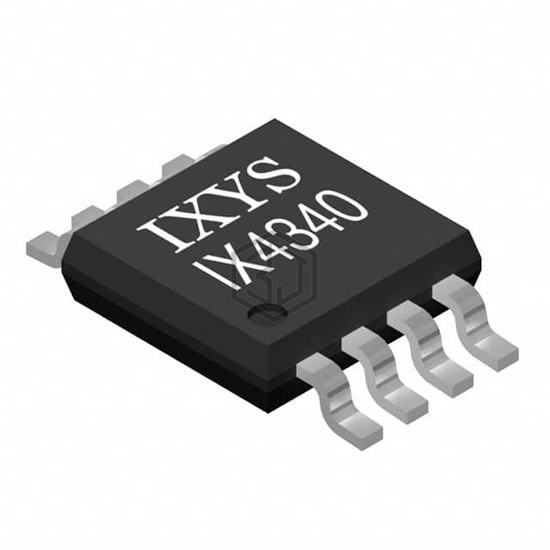

IX4340UE is a PMIC - Gate Drivers manufactured by IXYS Integrated Circuits Division. 5-AMP DUAL LOW-SIDE MOSFET DRIVE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 5V ~ 20V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.
In Stock: 9,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 7ns, 7ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-MSOP-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IX4340N | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| IX4340NTR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| IX4340UETR | IXYS Integrated Circuits Division | 5-AMP DUAL LOW-SIDE MOSFET DRIVE | 100% | View |
| IX4340NE | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| FAN3224TUMX-F085 | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 85% | View |
| FAN3224TM1X-F085 | onsemi | IC GATE DRVR LOW-SIDE DUAL 4A | 82% | View |
