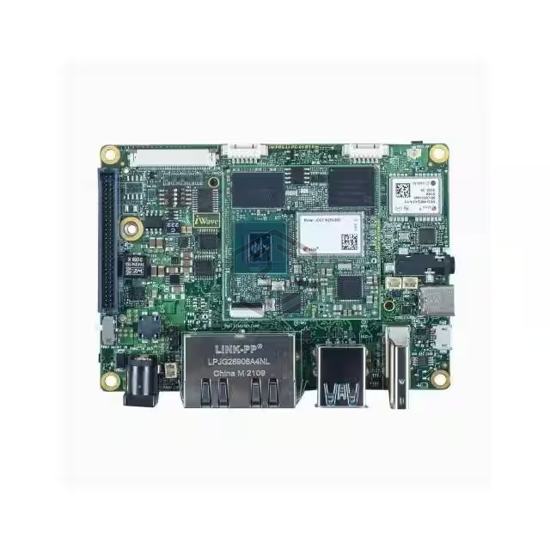

I.MX 8M PLUS QUAD PICOITX SBC
IW-G40S-OLPQ-4L004G-E016G-BIA is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by iWave Systems. I.MX 8M PLUS QUAD PICOITX SBC. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 3.937" x 2.755" (100mm x 70mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M7 |
| Speed | 1.8GHz |
| Number of Cores | 4, 1 |
| Power (Watts) | - |
| Cooling Type | Fan + Heat Sink |
| Size / Dimension | 3.937" x 2.755" (100mm x 70mm) |
| Form Factor | Pico-ITX |
| Expansion Site/Bus | - |
| RAM Capacity/Installed | 8GB/2GB |
| Storage Interface | eMMC, Micro SD |
| Video Outputs | HDMI, LVDS, MIPI DSI |
| Ethernet | Dual 10/100/1000 Mbps |
| USB | USB 2.0 (1) OTG, USB 3.0 (2) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | 27 |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for IW-G40S-OLPQ-4L004G-E016G-BIA and get a quote within 24 hours.
