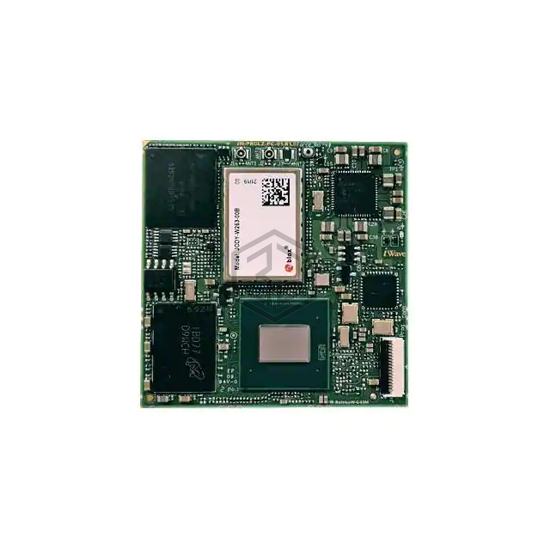

I.MX 8M PLUS QUAD OSM SOM
IW-G40M-OLPQ-4L002G-E016G-BIA is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by iWave Systems. I.MX 8M PLUS QUAD OSM SOM. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 1.771" x 1.771" (45mm x 45mm) (Size L), power (watts) 12.5W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M7 |
| Speed | 1.8GHz |
| Number of Cores | 4, 1 |
| Power (Watts) | 12.5W |
| Cooling Type | Heat Spreader + Heat Sink |
| Size / Dimension | 1.771" x 1.771" (45mm x 45mm) (Size L) |
| Form Factor | OSM |
| Expansion Site/Bus | - |
| RAM Capacity/Installed | 8GB/2GB |
| Storage Interface | eMMC |
| Video Outputs | HDMI, LVDS, MIPI DSI |
| Ethernet | - |
| USB | USB 2.0 (2), USB 3.0 (2) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | 19 |
| Analog Input:Output | - |
| Watchdog Timer | Yes |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for IW-G40M-OLPQ-4L002G-E016G-BIA and get a quote within 24 hours.
