I.MX 8M QUAD SMARC SOM

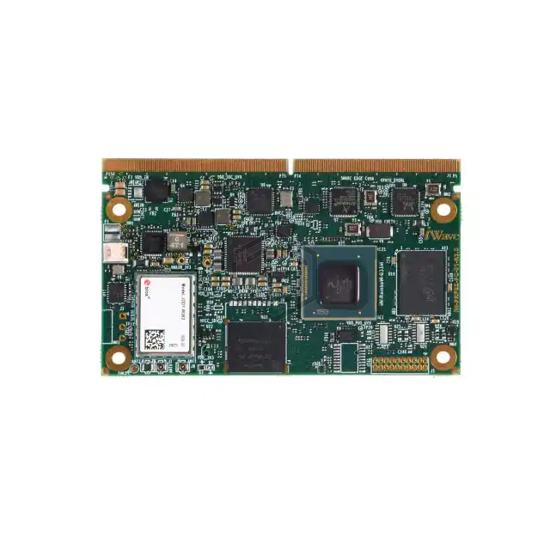

IW-G33M-SCMD-4L002G-E008G-BIM is a Single Board Computers (SBCs), Computer On Module (COM) manufactured by iWave Systems. I.MX 8M QUAD SMARC SOM. Key specifications: operating temperature -40°C ~ 85°C, size / dimension 3.23" x 1.97" (82mm x 50mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M4 |
| Speed | 1.5GHz |
| Number of Cores | 3 |
| Power (Watts) | - |
| Cooling Type | - |
| Size / Dimension | 3.23" x 1.97" (82mm x 50mm) |
| Form Factor | - |
| Expansion Site/Bus | I²C, SPI, UART |
| RAM Capacity/Installed | 2GB/0GB |
| Storage Interface | eMMC, MicroSD |
| Video Outputs | HDMI, MIPI-DSI, PCIe |
| Ethernet | 10/10/100Mbps (1), GbE |
| USB | USB 2.0 (4), USB 3.0 (1), USB OTG (1) |
| RS-232 (422, 485) | - |
| Digital I/O Lines | - |
| Analog Input:Output | - |
| Watchdog Timer | No |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for IW-G33M-SCMD-4L002G-E008G-BIM and get a quote within 24 hours.
