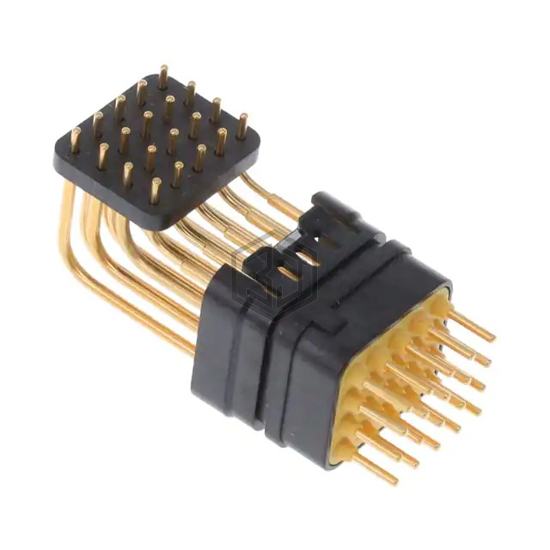

CONN EN4165 INSERT 20-22 PIN R/A
RPRM20-22PNCR is a Rectangular Connectors - Headers, Male Pins manufactured by ITT Cannon, LLC. CONN EN4165 INSERT 20-22 PIN R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 175°C, contact material Copper Alloy, termination Solder.
In Stock: 112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Insert |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 20 |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -55°C ~ 175°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for RPRM20-22PNCR and get a quote within 24 hours.
