CONN PLUG 10POS STRAIGHT W/SCKT

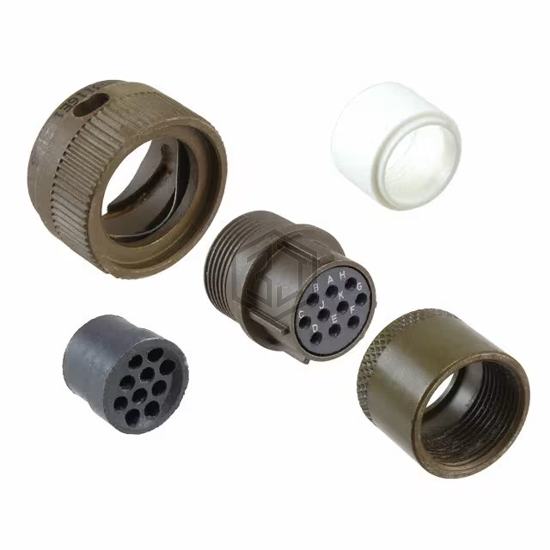

MS3116E12-10S is a Circular Connectors manufactured by ITT Cannon, LLC. CONN PLUG 10POS STRAIGHT W/SCKT. Key specifications: mounting type Free Hanging (In-Line), operating temperature -55°C ~ 125°C, voltage rating 600VAC, 850VDC, color Olive Drab.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 10 |
| Shell Size - Insert | 12-10 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish - Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | - |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 600VAC, 850VDC |
| Cable Opening | - |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for MS3116E12-10S and get a quote within 24 hours.
