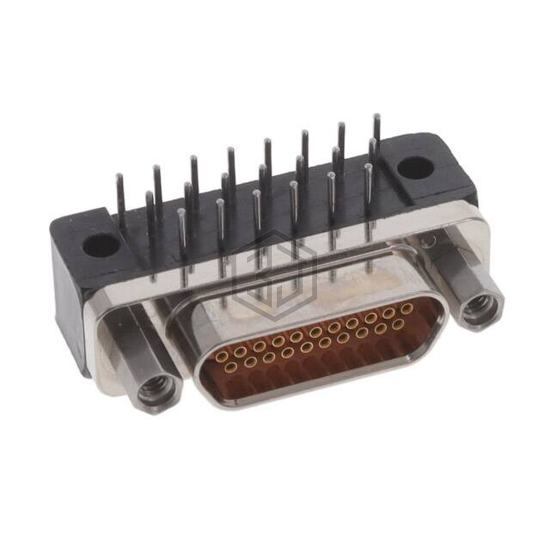

MICRO-D RECEPTACLE 21POS R/A PCB
M83513/13-C02NP is a D-Sub Connectors manufactured by ITT Cannon, LLC. MICRO-D RECEPTACLE 21POS R/A PCB. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, current rating (amps) 3A, termination Solder, number of positions 21.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Type, Micro-D |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | - |
Submit your RFQ for M83513/13-C02NP and get a quote within 24 hours.
