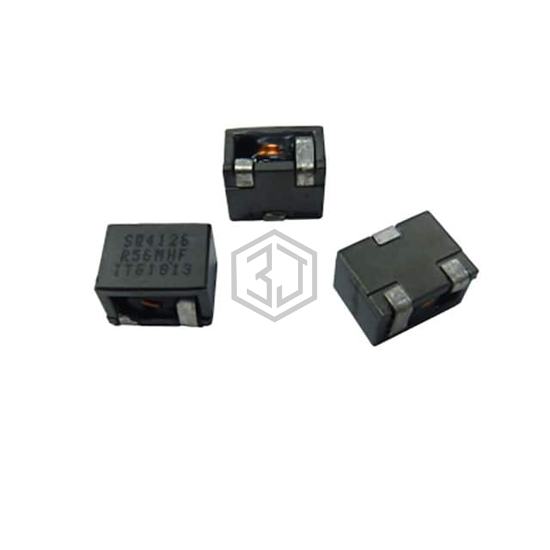

FIXED IND 2.2UH 11A 6.731MOHM SM
SQ4126-2R2MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 2.2UH 11A 6.731MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 11 A.
In Stock: 1,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.731mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.406" L x 0.323" W (10.30mm x 8.20mm) |
| Height - Seated (Max) | 0.262" (6.65mm) |
Submit your RFQ for SQ4126-2R2MHF and get a quote within 24 hours.
