0.90UH, 0.95MOHM, 14.5A MAX. FLA

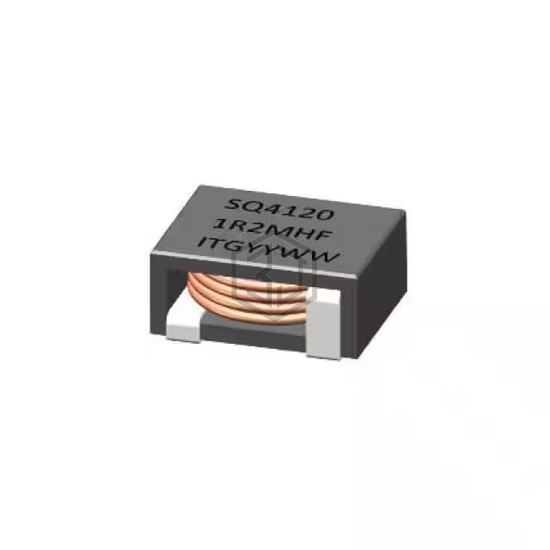

SQ4120-R90MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. 0.90UH, 0.95MOHM, 14.5A MAX. FLA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case 3-SMD, current rating (amps) 23 A.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 900 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 23 A |
| Current - Saturation (Isat) | 14.5A |
| Shielding | - |
| DC Resistance (DCR) | 0.95mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 0.406" L x 0.319" W (10.30mm x 8.10mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SQ4120-R90MHF and get a quote within 24 hours.
