FIXED IND 330NH 33A 1.3MOHM SMD

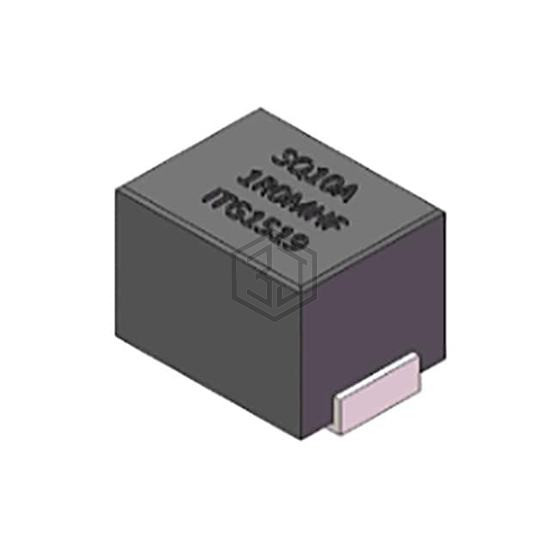

SQ10A-R33MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 330NH 33A 1.3MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 33 A.
In Stock: 1,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 33 A |
| Current - Saturation (Isat) | 50A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.3mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.339" W (12.50mm x 8.60mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for SQ10A-R33MHF and get a quote within 24 hours.
