FIXED IND 450NH 40A 0.35MOHM SMD

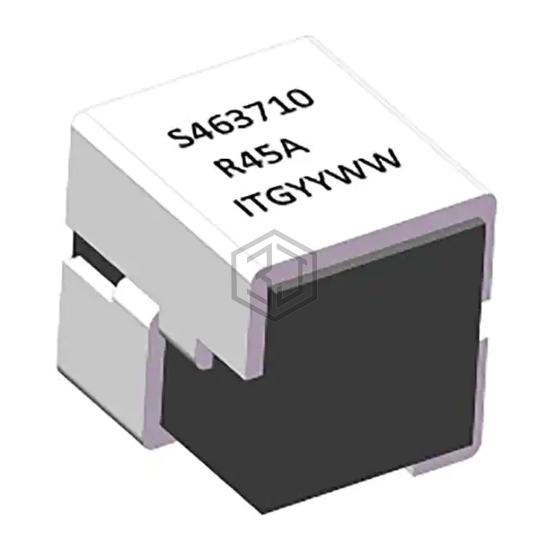

SLM463710A-R45MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 450NH 40A 0.35MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 1,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 450 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 51A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.35mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.461" L x 0.409" W (11.70mm x 10.40mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
Submit your RFQ for SLM463710A-R45MHF and get a quote within 24 hours.
