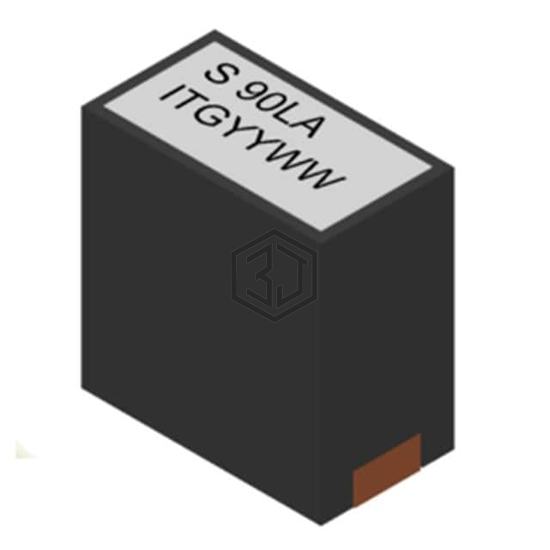

FIXED IND 75NH 63A 0.125MOHM SMD
SLA36385A-75L is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 75NH 63A 0.125MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case 2-SMD, J-Lead, current rating (amps) 63 A.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 75 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 63 A |
| Current - Saturation (Isat) | 110A |
| Shielding | - |
| DC Resistance (DCR) | 0.125mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 0.354" L x 0.197" W (9.00mm x 5.00mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
