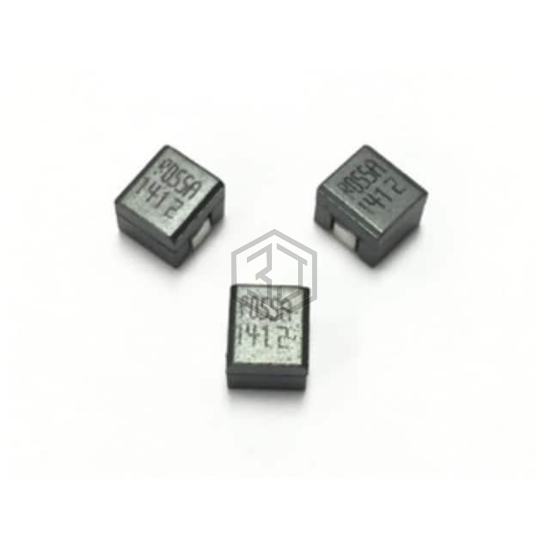

FIXED IND 55NH 34A 0.2 MOHM SMD
SL2218A-R055LHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 55NH 34A 0.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 34 A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 55 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 34 A |
| Current - Saturation (Isat) | 63A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.224" L x 0.217" W (5.70mm x 5.50mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
Submit your RFQ for SL2218A-R055LHF and get a quote within 24 hours.
