FIXED IND 24UH 19A 6.2 MOHM SMD

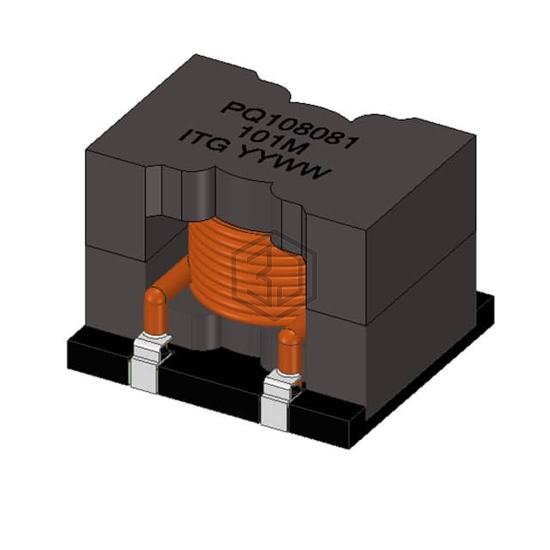

PQ108081-220MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 24UH 19A 6.2 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, 3 Lead, current rating (amps) 19 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 24 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | 3-SMD |
| Size / Dimension | 1.098" L x 1.098" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
Submit your RFQ for PQ108081-220MHF and get a quote within 24 hours.
