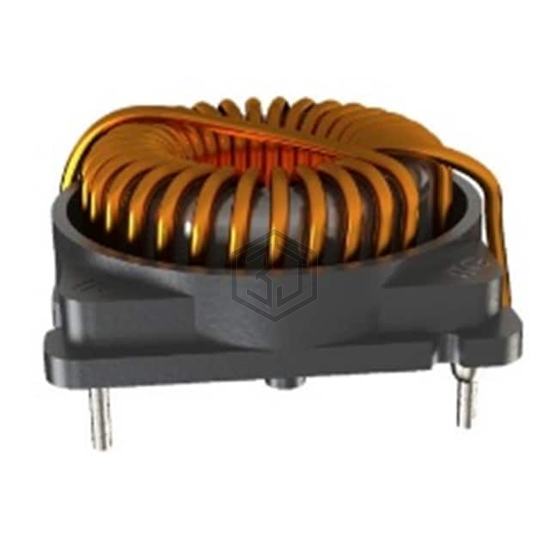

FIXED IND 300UH 2.9A 170MOHM TH
L301314A-301LHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 300UH 2.9A 170MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Horizontal, 4 Leads (Open), current rating (amps) 2.9 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 300 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 2.9 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.063" L x 1.012" W (27.00mm x 25.70mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
Submit your RFQ for L301314A-301LHF and get a quote within 24 hours.
