FIXED IND 150UH 6A 43 MOHM TH

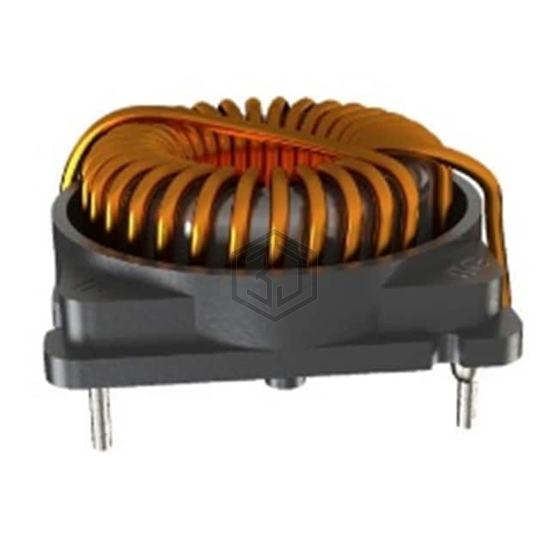

L301314A-151LHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 150UH 6A 43 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Horizontal, 4 Leads (Open), current rating (amps) 6 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 150 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 43mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.102" L x 1.012" W (28.00mm x 25.70mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
Submit your RFQ for L301314A-151LHF and get a quote within 24 hours.
