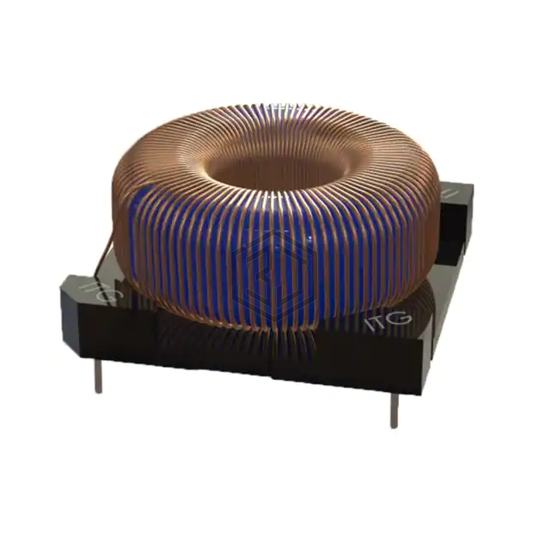

FIXED IND 7MH 1.8A 650 MOHM TH
L301307-702K is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 7MH 1.8A 650 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Horizontal, 4 Leads (Open), current rating (amps) 1.8 A.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 7 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 700mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 650mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.713" L x 1.713" W (43.50mm x 43.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
Submit your RFQ for L301307-702K and get a quote within 24 hours.
