100.00UH, 15%, 26.00MOHM, 8.0A.

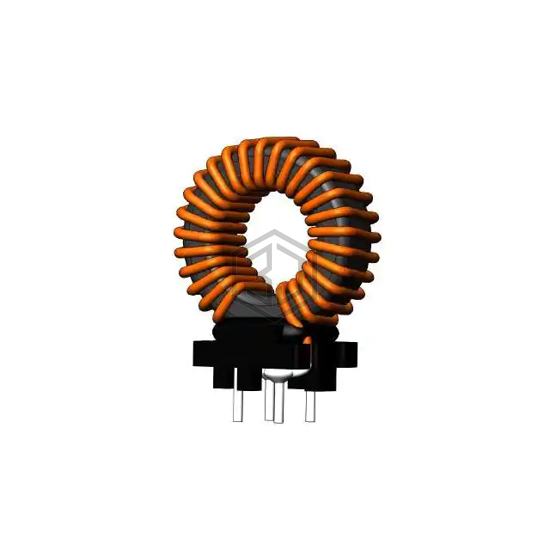

L201314A-101LHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. 100.00UH, 15%, 26.00MOHM, 8.0A.. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Vertical Cylinder, 4 Leads (Open), current rating (amps) 8 A.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Sendust |
| Inductance | 100 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 3.2A |
| Shielding | - |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.984" L x 0.610" W (25.00mm x 15.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
Submit your RFQ for L201314A-101LHF and get a quote within 24 hours.
