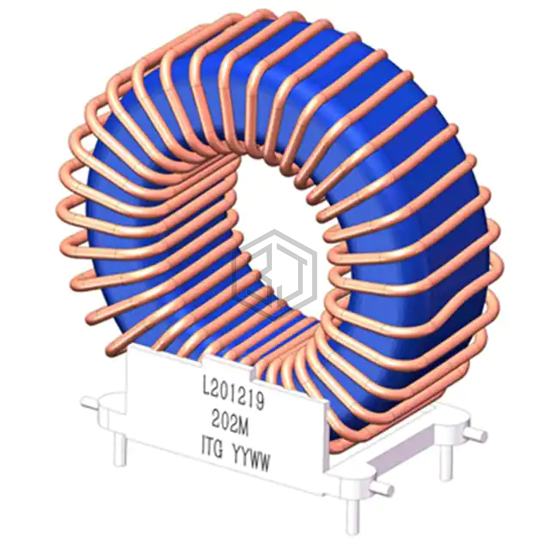

FIXED IND 251.2UH 9A 28 MOHM TH
L201219-251MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 251.2UH 9A 28 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Vertical Cylinder, 4 Leads (Open), current rating (amps) 9 A.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 251.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 9 A |
| Current - Saturation (Isat) | 6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.319" L x 0.787" W (33.50mm x 20.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
Submit your RFQ for L201219-251MHF and get a quote within 24 hours.
