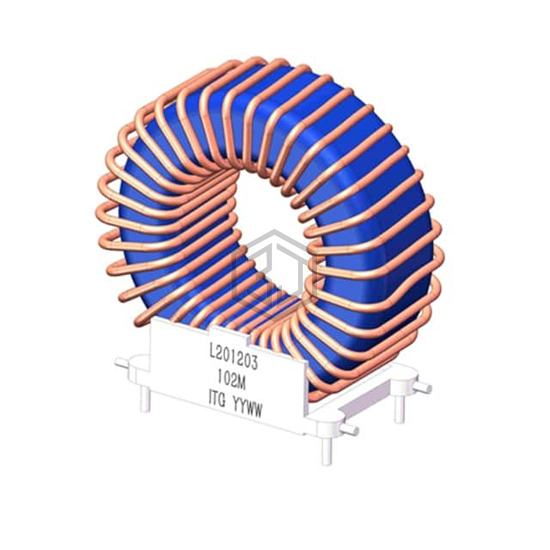

FIXED IND 1MH 8.2A 88 MOHM TH
L201204-102MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 1MH 8.2A 88 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Vertical Cylinder, 4 Leads (Open), current rating (amps) 8.2 A.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.2 A |
| Current - Saturation (Isat) | 5.4A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 88mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 2.126" L x 0.992" W (54.00mm x 25.20mm) |
| Height - Seated (Max) | 2.193" (55.70mm) |
Submit your RFQ for L201204-102MHF and get a quote within 24 hours.
