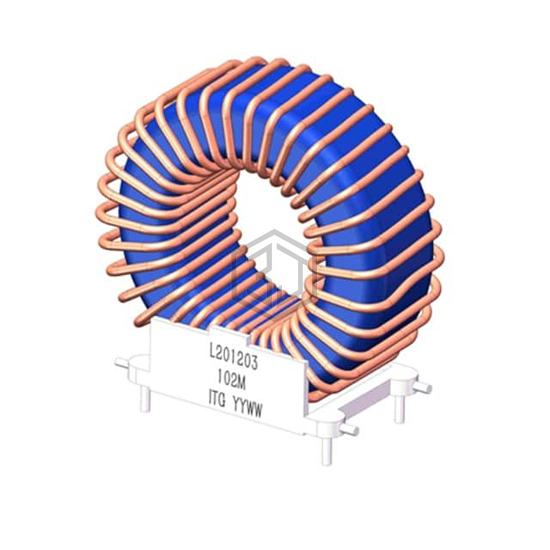

FIXED IND 2.632MH 4.5A 171 MOHM
L201203-262MHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 2.632MH 4.5A 171 MOHM. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Radial, Vertical Cylinder, 4 Leads (Open), current rating (amps) 4.5 A.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 2.632 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 4.5 A |
| Current - Saturation (Isat) | 1.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 171mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.732" L x 0.811" W (44.00mm x 20.60mm) |
| Height - Seated (Max) | 1.807" (45.90mm) |
Submit your RFQ for L201203-262MHF and get a quote within 24 hours.
