CMC 47MH 350MA 2LN TH

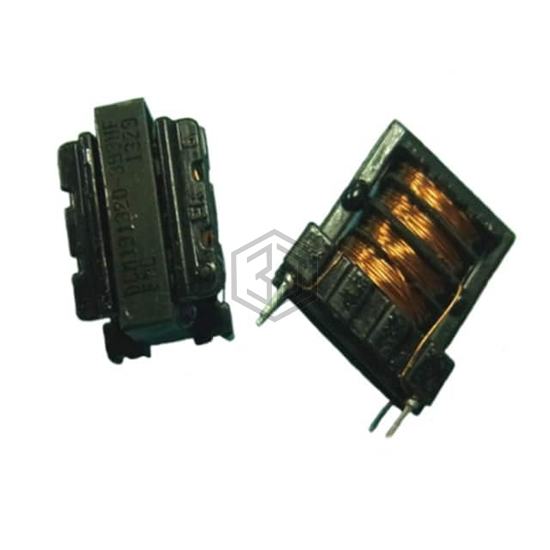

DCM191320V-473NHF is a Common Mode Chokes manufactured by ITG Electronics, Inc.. CMC 47MH 350MA 2LN TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 130°C, package / case Vertical, 4 PC Pin, size / dimension 0.728" L x 0.512" W (18.50mm x 13.00mm).
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 47 mH @ 10 kHz |
| Current Rating (Max) | 350mA |
| DC Resistance (DCR) (Max) | 2.75Ohm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 130°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.728" L x 0.512" W (18.50mm x 13.00mm) |
| Height (Max) | 0.787" (20.00mm) |
| Package / Case | Vertical, 4 PC Pin |
Submit your RFQ for DCM191320V-473NHF and get a quote within 24 hours.
