FIXED IND 215NH 40A 0.48MOHM SMD

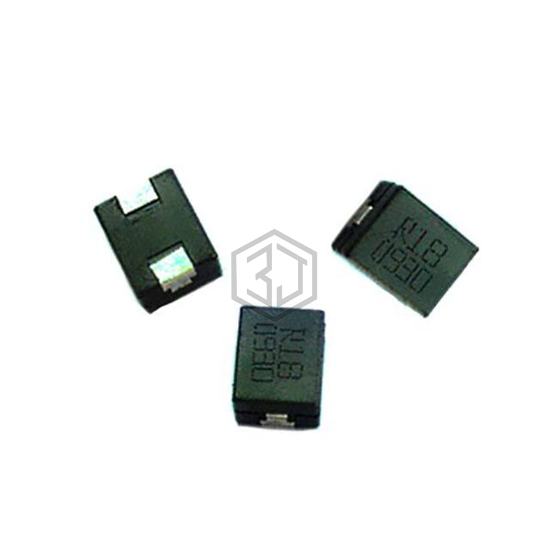

AH4724-R21KHF is a Fixed Inductors manufactured by ITG Electronics, Inc.. FIXED IND 215NH 40A 0.48MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 40 A.
In Stock: 80,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 215 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 40 A |
| Current - Saturation (Isat) | 54A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.48mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.476" W (10.00mm x 12.10mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
Submit your RFQ for AH4724-R21KHF and get a quote within 24 hours.
