150.0NH, 15%, 0.23MOHM, 58.0A MA

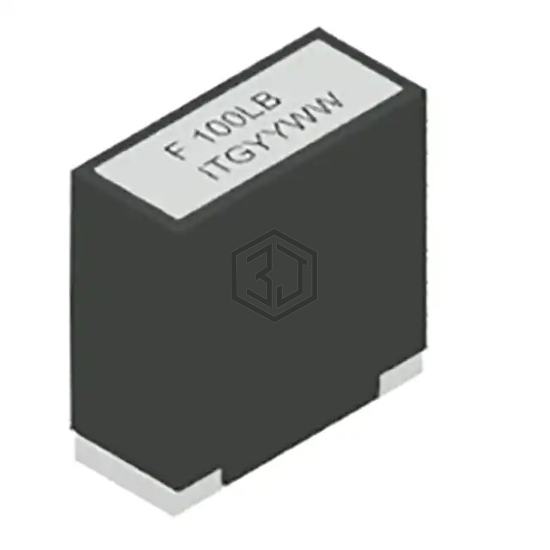

AFA41405B-150L is a Fixed Inductors manufactured by ITG Electronics, Inc.. 150.0NH, 15%, 0.23MOHM, 58.0A MA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, package / case Nonstandard, current rating (amps) 85 A.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 150 nH |
| Tolerance | ±15% |
| Current Rating (Amps) | 85 A |
| Current - Saturation (Isat) | 58A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 500 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.402" L x 0.189" W (10.20mm x 4.80mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
Submit your RFQ for AFA41405B-150L and get a quote within 24 hours.
