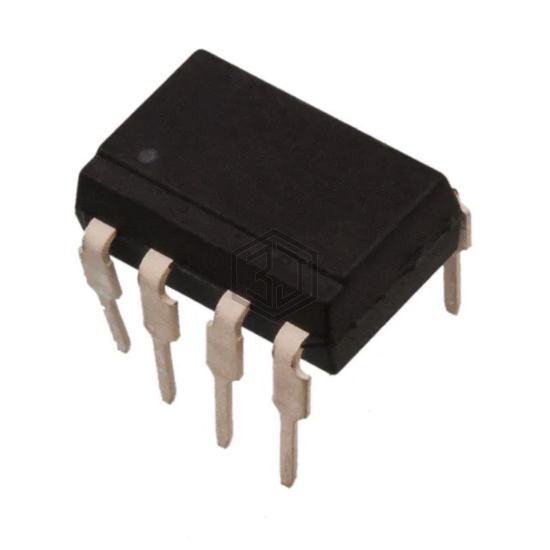

OPTOISO 5.3KV 2CH TRANS 8DIP
TLP621-2XGB is a Optoisolators - Transistor, Photovoltaic Output manufactured by Isocom Components 2004 LTD. OPTOISO 5.3KV 2CH TRANS 8DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.15V, package / case 8-DIP (0.400", 10.16mm).
In Stock: 16,636
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 55V |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for TLP621-2XGB and get a quote within 24 hours.
