OPTOISO 5KV 1CH GATE DRIVER 6SO

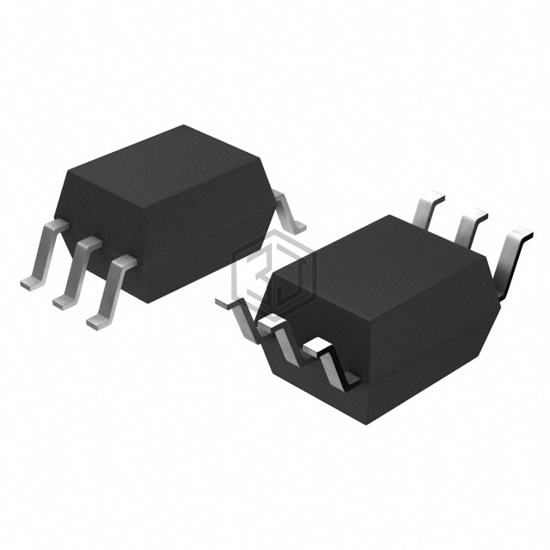

IS480P is a Isolators - Gate Drivers manufactured by Isocom Components 2004 LTD. OPTOISO 5KV 1CH GATE DRIVER 6SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.33V, package / case 6-SOIC (0.268", 6.80mm Width).
In Stock: 1,852
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 220ns |
| Pulse Width Distortion (Max) | 120ns |
| Rise / Fall Time (Typ) | 35ns, 35ns |
| Current - Output High, Low | 200mA, 200mA |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Current - DC Forward (If) (Max) | 10 mA |
| Voltage - Output Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SO Stretched |
| Approval Agency | - |
Submit your RFQ for IS480P and get a quote within 24 hours.
