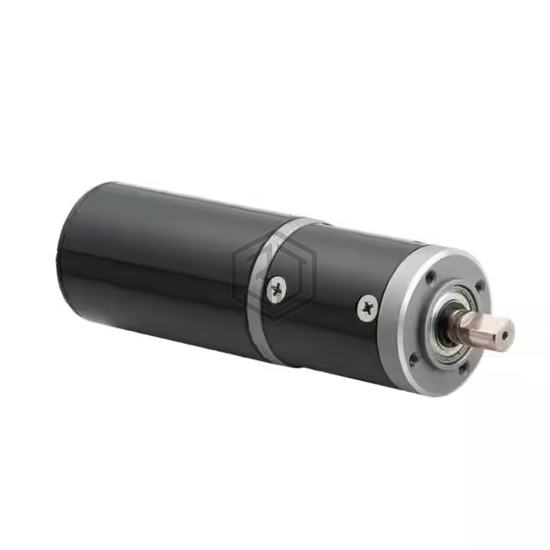

MOT-IG52GM 24V-L - ISL Products International - Motors - AC, DC

MOT-IG52GM 24V-L

ISL Products International

52MM PLANETARY GEAR MOTOR - BRUS

MOT-IG52GM 24V-L is a Motors - AC, DC manufactured by ISL Products International. 52MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 24VDC, size / dimension Round - 2.047" Dia (52.00mm), power - rated 36.72W.

In Stock: 4

Product Attributes

AttributeValue
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated24VDC
RPM186 RPM
Torque - Rated (oz-in / mNm)263.86 / 1863.26
Power - Rated36.72W
Encoder Type-
Size / DimensionRound - 2.047" Dia (52.00mm)
Diameter - Shaft0.472" (12.00mm)
Length - Shaft and Bearing7.657" (194.50mm)
Mounting Hole Spacing1.575" (40.00mm)
Termination Style-
Features-
Gear Reduction Ratio19
Torque - Max Momentary (oz-in / mNm)2083.11 / 14709.98
Operating Temperature-

Frequently Asked Questions

MOT-IG52GM 24V-L is a Motors - AC, DC manufactured by ISL Products International. 52MM PLANETARY GEAR MOTOR - BRUS

The supply voltage of MOT-IG52GM 24V-L is 24VDC.

The size of MOT-IG52GM 24V-L is Round - 2.047" Dia (52.00mm).

The power rating of MOT-IG52GM 24V-L is 36.72W.
