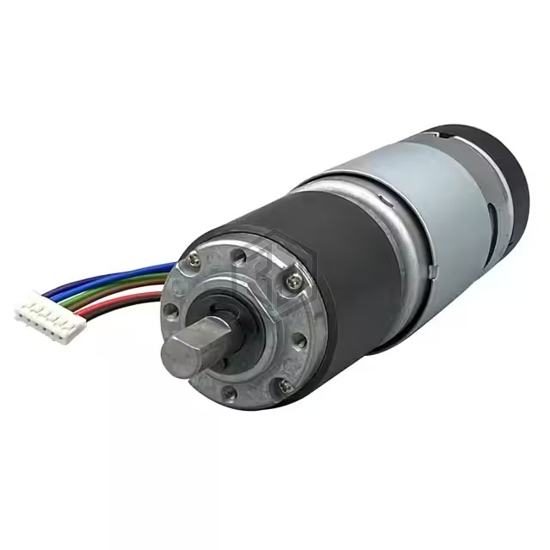

36MM PLANETARY GEAR MOTOR W/ MAG
MOT-IG32PGM1:264E is a Motors - AC, DC manufactured by ISL Products International. 36MM PLANETARY GEAR MOTOR W/ MAG. Key specifications: voltage - rated 12VDC, size / dimension Round - 1.260" Dia (32.00mm), termination style Wire Leads with Connector, power - rated 12.8W.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushed |
| Voltage - Rated | 12VDC |
| RPM | 20 RPM |
| Torque - Rated (oz-in / mNm) | 166.6 / 1176.8 |
| Power - Rated | 12.8W |
| Encoder Type | Incremental |
| Size / Dimension | Round - 1.260" Dia (32.00mm) |
| Diameter - Shaft | 0.236" (6.00mm) |
| Length - Shaft and Bearing | 3.874" (98.40mm) |
| Mounting Hole Spacing | 0.709" (18.00mm) |
| Termination Style | Wire Leads with Connector |
| Features | - |
| Gear Reduction Ratio | 264 |
| Torque - Max Momentary (oz-in / mNm) | 2083.1 / 14709.9 |
| Operating Temperature | - |
