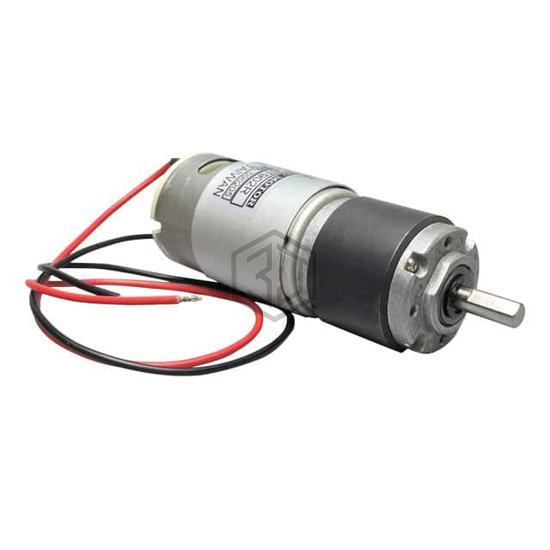

MOT-IG32PGM-24VDC - ISL Products International - Motors - AC, DC

MOT-IG32PGM-24VDC

ISL Products International

GEAR MOTOR BRUSH 24V W/WIRES

MOT-IG32PGM-24VDC is a Motors - AC, DC manufactured by ISL Products International. GEAR MOTOR BRUSH 24V W/WIRES. Key specifications: voltage - rated 24VDC, size / dimension Round - 1.417" Dia (36.00mm), termination style Wire Leads, power - rated 15W.

In Stock: 74

Product Attributes

AttributeValue
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated24VDC
RPM96 RPM
Torque - Rated (oz-in / mNm)128.5 / 945
Power - Rated15W
Encoder Type-
Size / DimensionRound - 1.417" Dia (36.00mm)
Diameter - Shaft0.236" (6.00mm)
Length - Shaft and Bearing3.622" (92.00mm)
Mounting Hole Spacing0.709" (18.00mm)
Termination StyleWire Leads
Features-
Gear Reduction Ratio51
Torque - Max Momentary (oz-in / mNm)555 / 3922
Operating Temperature-

Frequently Asked Questions

MOT-IG32PGM-24VDC is a Motors - AC, DC manufactured by ISL Products International. GEAR MOTOR BRUSH 24V W/WIRES

The supply voltage of MOT-IG32PGM-24VDC is 24VDC.

The size of MOT-IG32PGM-24VDC is Round - 1.417" Dia (36.00mm).

The termination type of MOT-IG32PGM-24VDC is Wire Leads.
