32MM PLANETARY GEAR MOTOR - BRUS

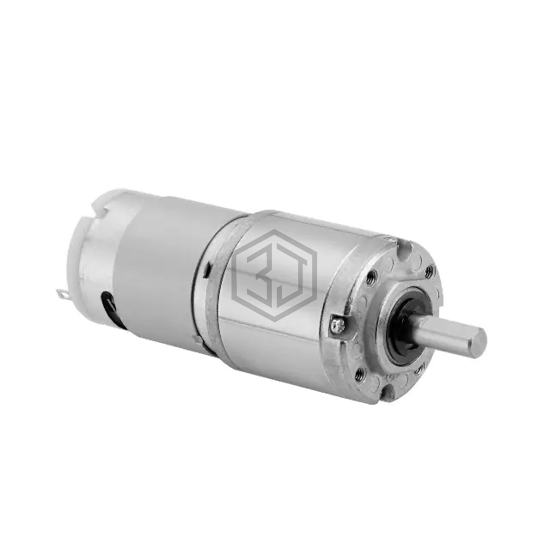

MOT-IG32GM 1:51 is a Motors - AC, DC manufactured by ISL Products International. 32MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 12VDC, size / dimension Round - 1.260" Dia (32.00mm), power - rated 2.55W.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushed |
| Voltage - Rated | 12VDC |
| RPM | 99 RPM |
| Torque - Rated (oz-in / mNm) | 34.72 / 245.17 |
| Power - Rated | 2.55W |
| Encoder Type | - |
| Size / Dimension | Round - 1.260" Dia (32.00mm) |
| Diameter - Shaft | 0.236" (6.00mm) |
| Length - Shaft and Bearing | 3.752" (95.30mm) |
| Mounting Hole Spacing | 1.023" (26.00mm) |
| Termination Style | - |
| Features | - |
| Gear Reduction Ratio | 51 |
| Torque - Max Momentary (oz-in / mNm) | 333.30 / 2353.60 |
| Operating Temperature | - |
Submit your RFQ for MOT-IG32GM 1:51 and get a quote within 24 hours.
