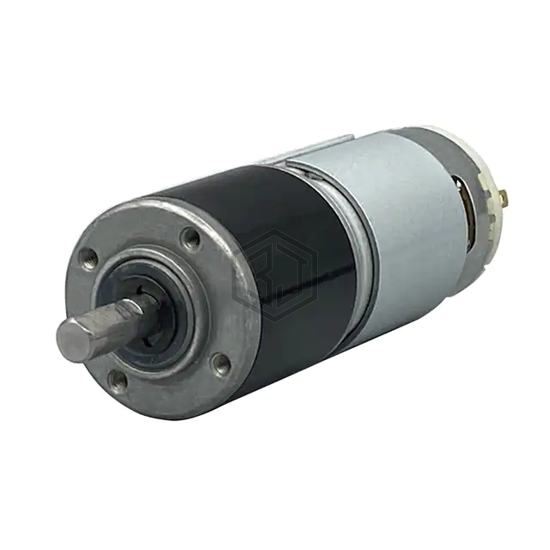

30MM PLANETARY GEAR MOTOR - BRUS
MOT-IG30GM-1:19 is a Motors - AC, DC manufactured by ISL Products International. 30MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 12VDC, size / dimension Round - 1.181" Dia (30.00mm), termination style Quick Connect, power - rated 7W.
In Stock: 6,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushed |
| Voltage - Rated | 12VDC |
| RPM | 310 RPM |
| Torque - Rated (oz-in / mNm) | 20.8 / 147.1 |
| Power - Rated | 7W |
| Encoder Type | - |
| Size / Dimension | Round - 1.181" Dia (30.00mm) |
| Diameter - Shaft | 0.591" (15.00mm) |
| Length - Shaft and Bearing | 3.016" (76.60mm) |
| Mounting Hole Spacing | 0.630" (16.00mm) |
| Termination Style | Quick Connect |
| Features | - |
| Gear Reduction Ratio | 19 |
| Torque - Max Momentary (oz-in / mNm) | 76.38 / 539.4 |
| Operating Temperature | - |
Submit your RFQ for MOT-IG30GM-1:19 and get a quote within 24 hours.
