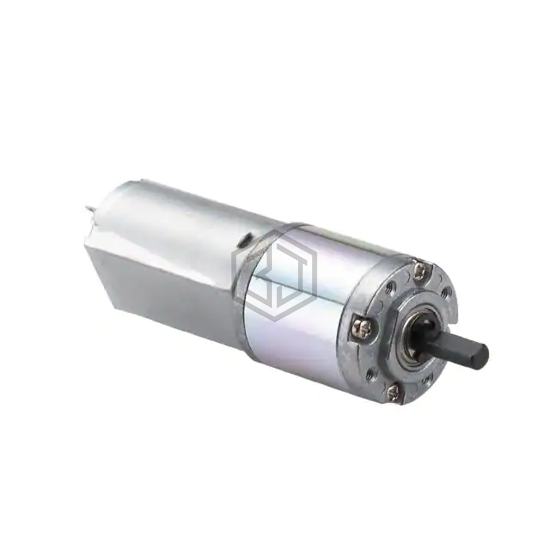

22MM PLANETARY GEAR MOTOR - BRUS
MOT-IG22GM 1:742 is a Motors - AC, DC manufactured by ISL Products International. 22MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 12VDC, size / dimension Round - 0.866" Dia (22.00mm), power - rated 0.78W.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushed |
| Voltage - Rated | 12VDC |
| RPM | 8 RPM |
| Torque - Rated (oz-in / mNm) | 138.87 / 980.67 |
| Power - Rated | 0.78W |
| Encoder Type | - |
| Size / Dimension | Round - 0.866" Dia (22.00mm) |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 2.953" (75.00mm) |
| Mounting Hole Spacing | 0.709" (18.00mm) |
| Termination Style | - |
| Features | - |
| Gear Reduction Ratio | 742 |
| Torque - Max Momentary (oz-in / mNm) | 236.08 / 1667.13 |
| Operating Temperature | - |
Submit your RFQ for MOT-IG22GM 1:742 and get a quote within 24 hours.
