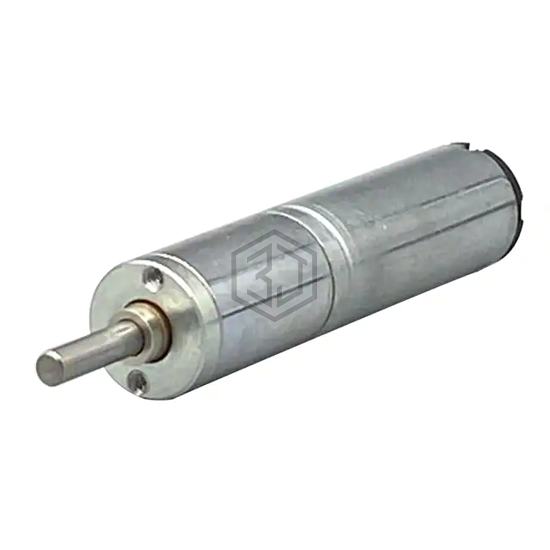

MOT-IG12M-3V-1:64 - ISL Products International - Motors - AC, DC

MOT-IG12M-3V-1:64

ISL Products International

12MM PLANETARY GEAR MOTOR - BRUS

MOT-IG12M-3V-1:64 is a Motors - AC, DC manufactured by ISL Products International. 12MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 3VDC, size / dimension Round - 0.472" Dia (12.00mm), termination style Quick Connect, power - rated 0.59W.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated3VDC
RPM150 RPM
Torque - Rated (oz-in / mNm)3.2 / 22.5
Power - Rated0.59W
Encoder Type-
Size / DimensionRound - 0.472" Dia (12.00mm)
Diameter - Shaft0.118" (3.00mm)
Length - Shaft and Bearing1.945" (49.40mm)
Mounting Hole Spacing0.768" (19.50mm)
Termination StyleQuick Connect
Features-
Gear Reduction Ratio64
Torque - Max Momentary (oz-in / mNm)7.3 / 51.5
Operating Temperature-

Frequently Asked Questions

MOT-IG12M-3V-1:64 is a Motors - AC, DC manufactured by ISL Products International. 12MM PLANETARY GEAR MOTOR - BRUS

The supply voltage of MOT-IG12M-3V-1:64 is 3VDC.

The size of MOT-IG12M-3V-1:64 is Round - 0.472" Dia (12.00mm).

The termination type of MOT-IG12M-3V-1:64 is Quick Connect.
