MOT-IG-32PGM-10KG - ISL Products International - Motors - AC, DC

MOT-IG-32PGM-10KG

ISL Products International

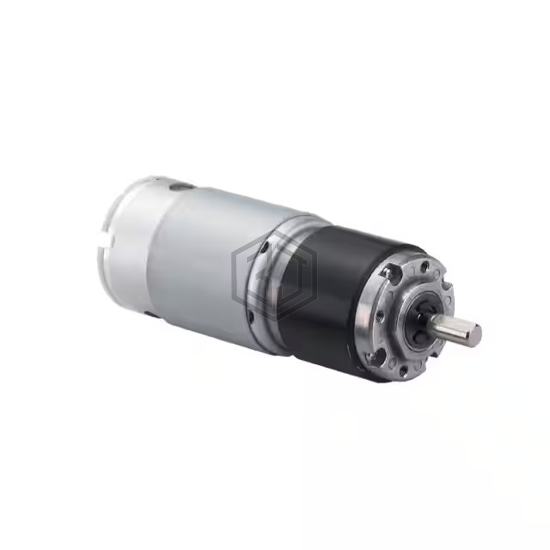

32MM PLANETARY GEAR MOTOR - BRUS

MOT-IG-32PGM-10KG is a Motors - AC, DC manufactured by ISL Products International. 32MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 12VDC, size / dimension Round - 1.260" Dia (32.00mm), power - rated 7.27W.

In Stock: 10

Product Attributes

AttributeValue
Product StatusActive
TypeDC Motor
FunctionGearmotor
Motor TypeBrushed
Voltage - Rated12VDC
RPM38 RPM
Torque - Rated (oz-in / mNm)263.86 / 1863.26
Power - Rated7.27W
Encoder Type-
Size / DimensionRound - 1.260" Dia (32.00mm)
Diameter - Shaft0.236" (6.00mm)
Length - Shaft and Bearing4.382" (111.30mm)
Mounting Hole Spacing1.023" (26.00mm)
Termination Style-
Features-
Gear Reduction Ratio139
Torque - Max Momentary (oz-in / mNm)416.62 / 2942
Operating Temperature-

Frequently Asked Questions

MOT-IG-32PGM-10KG is a Motors - AC, DC manufactured by ISL Products International. 32MM PLANETARY GEAR MOTOR - BRUS

The supply voltage of MOT-IG-32PGM-10KG is 12VDC.

The size of MOT-IG-32PGM-10KG is Round - 1.260" Dia (32.00mm).

The power rating of MOT-IG-32PGM-10KG is 7.27W.
