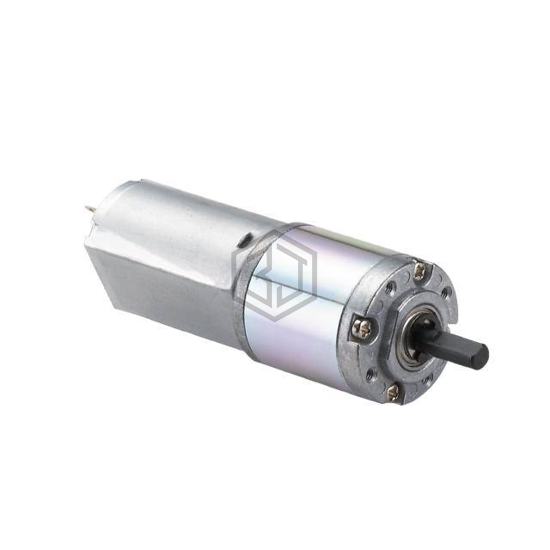

22MM PLANETARY GEAR MOTOR - BRUS
MOT-IG-22GM-24V is a Motors - AC, DC manufactured by ISL Products International. 22MM PLANETARY GEAR MOTOR - BRUS. Key specifications: voltage - rated 24VDC, size / dimension Round - 0.866" Dia (22.00mm), power - rated 1.25W.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC Motor |
| Function | Gearmotor |
| Motor Type | Brushed |
| Voltage - Rated | 24VDC |
| RPM | 71 RPM |
| Torque - Rated (oz-in / mNm) | 19.44 / 137.29 |
| Power - Rated | 1.25W |
| Encoder Type | - |
| Size / Dimension | Round - 0.866" Dia (22.00mm) |
| Diameter - Shaft | 0.157" (4.00mm) |
| Length - Shaft and Bearing | 2.669" (67.80mm) |
| Mounting Hole Spacing | 0.709" (18.00mm) |
| Termination Style | - |
| Features | - |
| Gear Reduction Ratio | 104 |
| Torque - Max Momentary (oz-in / mNm) | 83.32 / 588.40 |
| Operating Temperature | - |
