GENERAL PURPOSE DRIVER, 25V 4A S

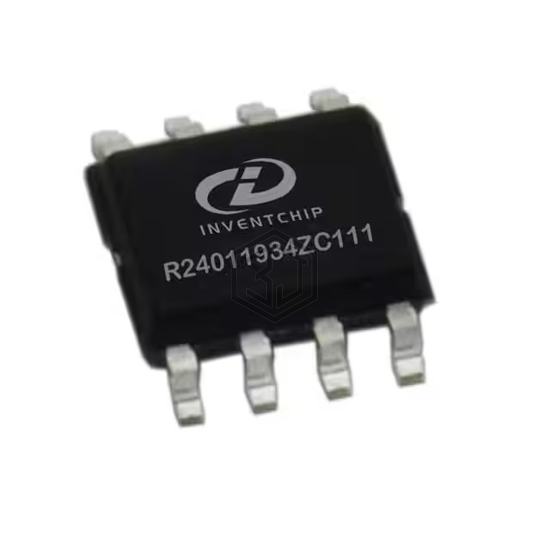

IVCR2401DPR is a PMIC - Gate Drivers manufactured by Inventchip. GENERAL PURPOSE DRIVER, 25V 4A S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 8V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.
In Stock: 3,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 8V ~ 20V |
| Logic Voltage - VIL, VIH | 1.7V, 1.6V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 13ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| L6491DTR | STMicroelectronics | IC GATE DRVR HALF-BRIDGE 14SO | 92% | View |
| UCC27211DR | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8SOIC | 89% | View |
| MCP14E5-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 82% | View |
| UCC37323D | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 81% | View |
| UCC27423MDREP | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 79% | View |
| UCC27425DGNR | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 79% | View |
Submit your RFQ for IVCR2401DPR and get a quote within 24 hours.
