SPDT ANALOG SWITCH, 2 FUNC, 1 CH

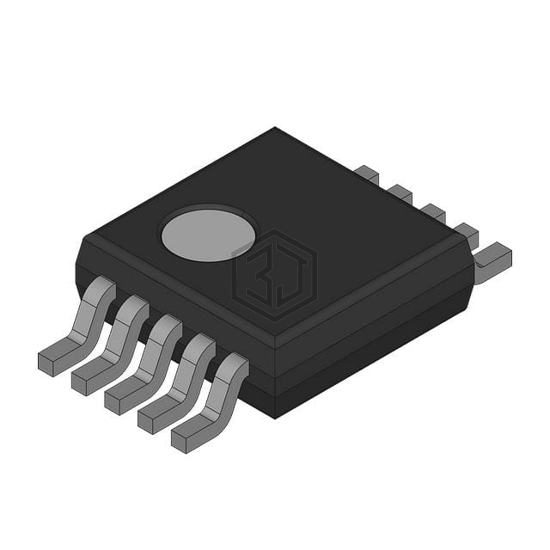

ISL84762IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT ANALOG SWITCH, 2 FUNC, 1 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 684
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 12ns |
| -3db Bandwidth | - |
| Charge Injection | 95pC |
| Channel Capacitance (CS(off), CD(off)) | 115pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -95dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
ISL84762IUZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84762IU-T | Renesas Electronics America Inc | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| ISL84780IRZ-T | Intersil | SPDT ANALOG SWITCH, 4 FUNC, 1 CH | 79% | View |
| PI3A3159ZCEX | Diodes Incorporated | IC SWITCH SPDT 6TDFN | 79% | View |
| 74HC1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 61% | View |
| ADG786BCPZ | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 20LFCSP | 53% | View |
| TS5A3359YZPR | Texas Instruments | IC SWITCH SP3T 8DSBGA | 51% | View |
Submit your RFQ for ISL84762IUZ and get a quote within 24 hours.
