SPDT ANALOG SWITCH, 2 FUNC, 2 CH

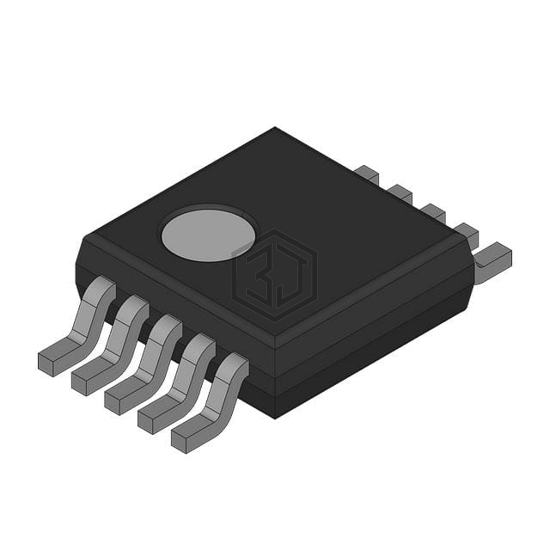

ISL84684IU-T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT ANALOG SWITCH, 2 FUNC, 2 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 693
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 55mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 27ns |
| -3db Bandwidth | - |
| Charge Injection | 94pC |
| Channel Capacitance (CS(off), CD(off)) | 65pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
ISL84684IU-T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NS5A4684SMNTAG | onsemi | IC SWITCH 2 X SPDT 10WFQFN | 79% | View |
| ADG884BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 73% | View |
| RS2259XTSS16 | Runic Technology | IC SWITCH QUAD SPST 16TSSOP | 68% | View |
| RS2259BXTSS16 | Runic Technology | IC SWITCH QUAD SPST 16TSSOP | 68% | View |
| ISL84582IVZ | Intersil | DIFFERENTIAL MULTIPLEXER, 1 FUNC | 58% | View |
| ISL84053IBZ | Renesas Electronics America Inc | IC MUX/DEMUX TRIPLE 2X1 16SOIC | 53% | View |
Submit your RFQ for ISL84684IU-T and get a quote within 24 hours.
