SPST ANALOG SWITCH, 2 FUNC, 1 CH

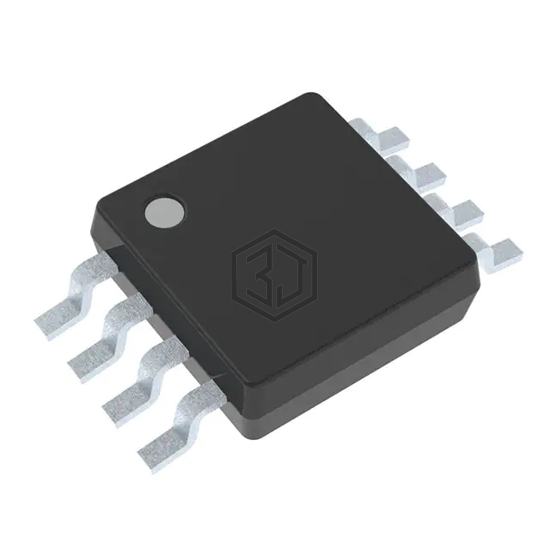

ISL84541IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPST ANALOG SWITCH, 2 FUNC, 1 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 9,341
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
ISL84541IUZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84541IBZ-T | Renesas Electronics America Inc | IC SWITCH DUAL SPST 8SOIC | 100% | View |
| MAX4544ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8SOIC | 91% | View |
| MAX4544ESA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8SOIC | 91% | View |
| ISL84544IBZ | Renesas Electronics America Inc | IC SWITCH SPDT 8SOIC | 91% | View |
| ISL84544IBZ-T | Renesas Electronics America Inc | IC SWITCH SPDT 8SOIC | 91% | View |
| MAX4066ESD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14SOIC | 66% | View |
Submit your RFQ for ISL84541IUZ and get a quote within 24 hours.
