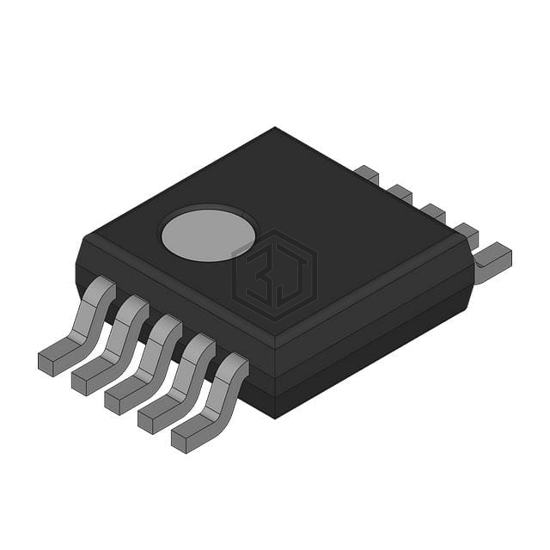

DPDT ANALOG SWITCH, 2 CHANNEL,
ISL84525IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DPDT ANALOG SWITCH, 2 CHANNEL,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 5,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 0.8pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4514ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8SOIC | 76% | View |
| ISL84514IBZ-T | Intersil | LOW-VOLTAGE, SINGLE SUPPLY, SPST | 74% | View |
| ISL84515IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SOT23-5 | 74% | View |
| DG403DVZ-T | Renesas Electronics America Inc | IC SWITCH DUAL DPST 16TSSOP | 66% | View |
| DG403DY-T1-E3 | Vishay Siliconix | IC SWITCH DUAL SPDT 16SOIC | 66% | View |
| MAX4640ESD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14SOIC | 63% | View |
Submit your RFQ for ISL84525IUZ and get a quote within 24 hours.
