DPDT ANALOG SWITCH, 2 CHANNEL

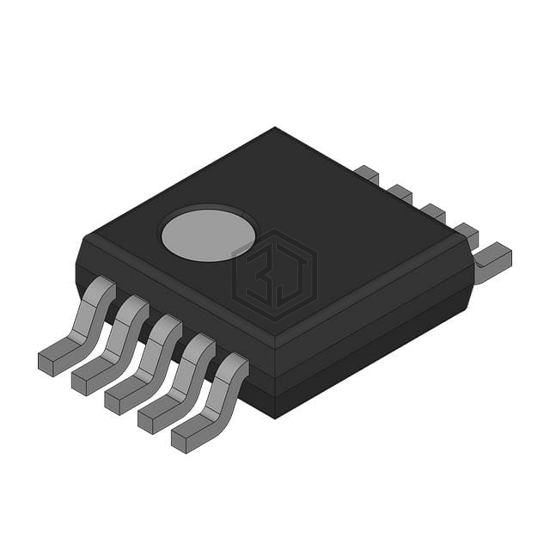

ISL84525IU is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. DPDT ANALOG SWITCH, 2 CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 6,776
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 0.8pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
ISL84525IU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4524EUB+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 10UMAX | 91% | View |
| MAX4504EUK+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 85% | View |
| 9204202XA | Vishay Siliconix | IC MUX DUAL 4:1 100 OHM FLATPACK | 85% | View |
| DG405EY | Harris Corporation | MONOLITHIC CMOS ANALOG SWITCH | 66% | View |
| MAX301ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 58% | View |
| ADG1411YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 53% | View |
Submit your RFQ for ISL84525IU and get a quote within 24 hours.
