SINGLE-ENDED MUX, 4 CHANNEL

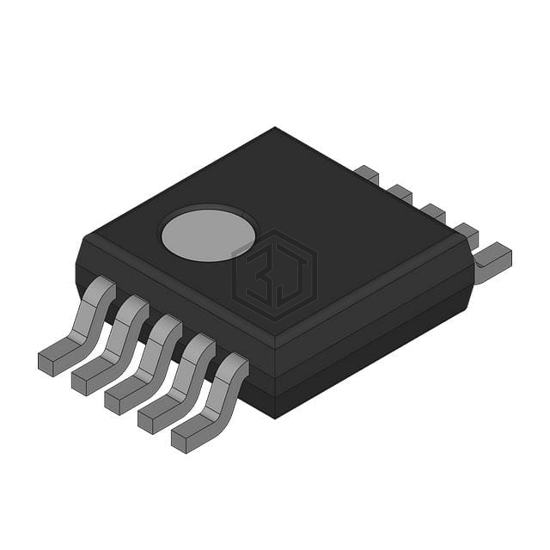

ISL84524IU is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SINGLE-ENDED MUX, 4 CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 8,411
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| -3db Bandwidth | - |
| Charge Injection | 0.8pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
ISL84524IU is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4558EEE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16QSOP | 94% | View |
| MAX4524LETB+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 4X1 10TDFN | 91% | View |
| MAX4559EEE+ | Analog Devices Inc./Maxim Integrated | IC MUX/SW ANLG LV CMOS 16-QSOP | 86% | View |
| MAX4532EAP+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER TRPL 1X2 20SSOP | 83% | View |
| MAX4568EUK+T | Analog Devices Inc./Maxim Integrated | IC ANALOG SWITCH SPST SOT23-5 | 70% | View |
| DG408DQ-E3 | Vishay Siliconix | IC MUX CMOS ANG DUAL 8CH 16TSSOP | 68% | View |
Submit your RFQ for ISL84524IU and get a quote within 24 hours.
