SPDT ANALOG SWITCH, 3 FUNC, 2 CH

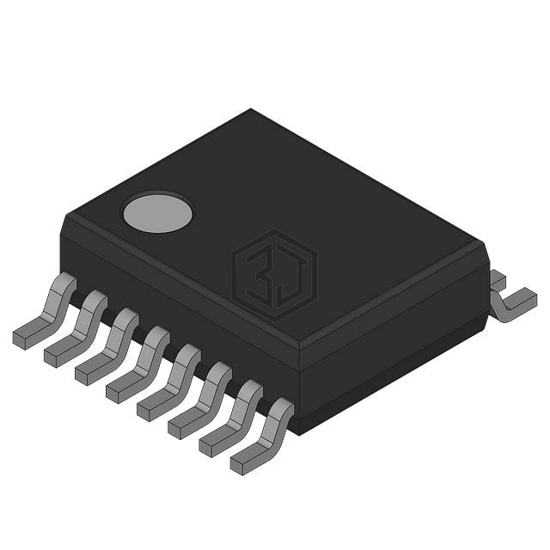

ISL84053IA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT ANALOG SWITCH, 3 FUNC, 2 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SSOP (0.154", 3.90mm Width), number of circuits 3.
In Stock: 8,440
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm (Max) |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 50ns, 40ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 2pA (Typ) |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
ISL84053IA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84052IBZ-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16SOIC | 95% | View |
| ISL84051IVZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 16TSSOP | 86% | View |
| DG612EEY-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 16SOIC | 71% | View |
| DG411LEDQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 65% | View |
| ADG884BCBZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10WLCSP | 54% | View |
| AS1746-BTDR | ams | IC SWITCH DUAL SPDT 10-TDFN | 54% | View |
Submit your RFQ for ISL84053IA and get a quote within 24 hours.
